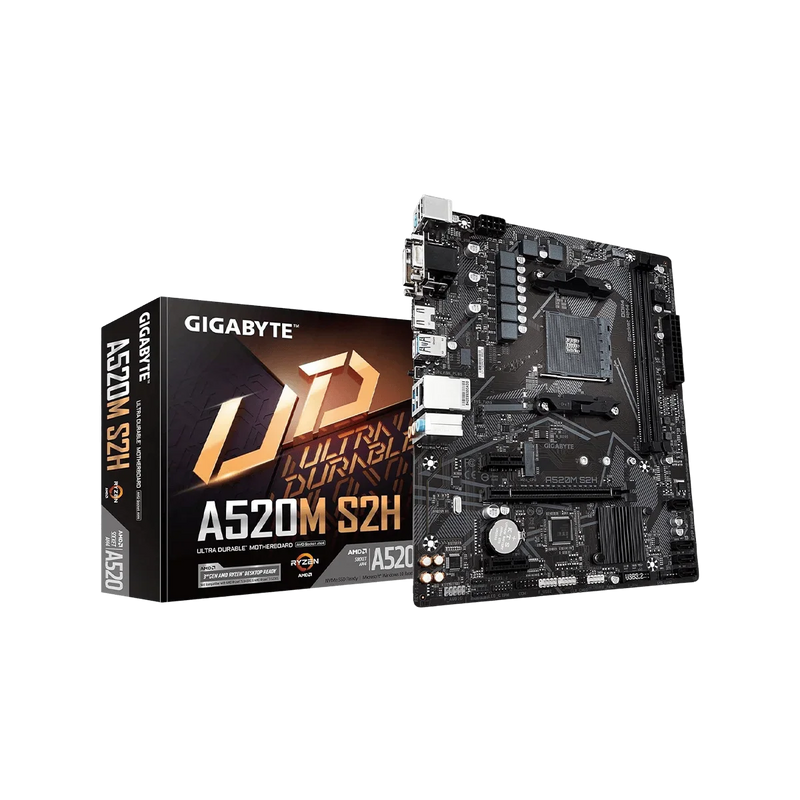

The Gigabyte A520M S2H is a microATX motherboard built for AMD Ryzen AM4 processors. It supports NVMe PCIe 3.0 x4 M.2, has triple display outputs, and features Q-Flash Plus for easy BIOS updates. Ideal for budget gaming and productivity setups.

Product Specifications

• CPU Socket: AM4 (Supports AMD Ryzen 5000/4000G/3000 series)
• Form Factor: MicroATX
• Power Phases: 4+3 Phases Digital PWM
• LAN: Gigabyte Gaming GbE LAN
• M.2 Slot: 1 x NVMe PCIe 3.0 x4
• Display Outputs: HDMI / DVI-D / D-Sub
• Memory Support: 2 x DDR4 DIMMs, up to 64GB
• BIOS Update Feature: Q-Flash Plus
• RGB Support: RGB Fusion 2.0
• Audio: 8-Channel HD Audio with Audio Noise Guard
• USB Ports: USB 3.2 Gen 1 and USB 2.0 ports
• Expansion Slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1

Key Features

Triple Display Interface: Equipped with HDMI, DVI-D, and D-Sub ports for multi-display setups without needing a GPU.
Q-Flash Plus Support: Update BIOS without installing a CPU, RAM, or GPU—great for future upgrades or troubleshooting.
High-Speed NVMe Storage: M.2 slot supports PCIe 3.0 x4 SSDs for fast boot times and quick data access.
Digital Power Architecture: 4+3 phase digital PWM ensures stable power delivery for Ryzen CPUs under load.
RGB Fusion 2.0 Ready: Customize your PC lighting with RGB headers and sync with other Gigabyte RGB components.

How it works

The Gigabyte A520M S2H serves as the central hub for AMD Ryzen AM4 processors, offering a reliable power delivery system and essential connectivity for mainstream users. You can install high-speed DDR4 memory and connect fast NVMe SSDs for enhanced performance. Its triple-display support enables basic multi-monitor productivity, while Q-Flash Plus allows for easy BIOS upgrades even without CPU or RAM installed. The RGB Fusion 2.0 feature enables users to customize lighting effects for a more personalized build.

FAQs

Does the A520M S2H support Ryzen 5000 series out of the box?

It may require a BIOS update depending on the batch. Q-Flash Plus can be used to update without a CPU.

Can I overclock my Ryzen CPU with this board?

No, the A520 chipset does not support CPU overclocking, though memory tuning is possible.

What is the maximum RAM speed supported?

It supports up to DDR4 4733(O.C.), depending on the CPU and memory module used.

Is Wi-Fi included with this motherboard?

No, this model does not have built-in Wi-Fi, but it supports add-on Wi-Fi cards via PCIe.
