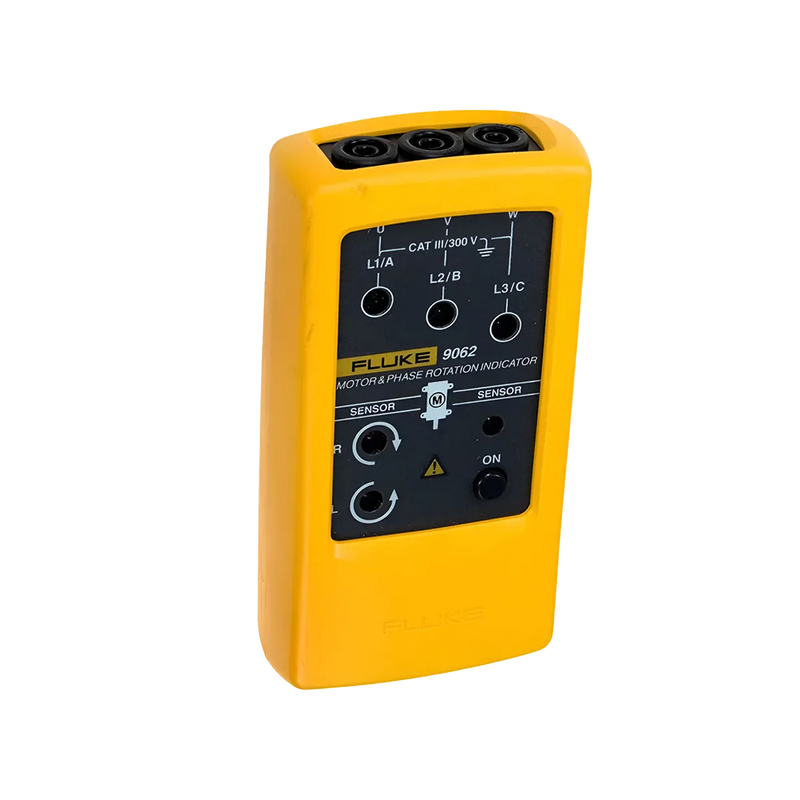

Fluke 9062 Motor and Phase Rotation Indicator

The Fluke 9062 Motor and Phase Rotation Indicator is a compact, handheld tool designed to check the direction of motor rotation and phase sequence in three-phase electrical systems. It helps technicians quickly verify wiring and prevent motor damage during installations and maintenance.

Product Specification:

• Voltage Range: 100 V to 700 V AC
• Frequency Range: 15 Hz to 400 Hz
• Test Leads: Included with crocodile clips and test probes

Key Features:

Non-Contact Motor Rotation Detection: Determines motor shaft direction without connecting to the motor, ideal for quick diagnostics.
Phase Sequence Indication: Clearly displays phase order (L1, L2, L3) to ensure proper wiring in three-phase systems.
Wide Voltage Compatibility: Operates across a broad AC voltage range (100–700V), suitable for industrial and commercial environments.
Bright LED Indicators: Visual cues for phase sequence and rotation direction make it easy to interpret results on-site.
Compact & Rugged Design: Lightweight and durable housing designed for daily use in demanding electrical environments.

How it Works:

The Fluke 9062 connects to a three-phase power source using the included test leads and clips. Once connected, it detects the sequence of the phases and displays the correct order via LED indicators. For motor rotation tests, the device senses the magnetic field to determine the shaft’s direction without making direct electrical contact. This dual functionality helps electricians and maintenance teams verify correct wiring before energizing motors, preventing costly equipment damage or reverse rotation issues.

FAQs:

Can the Fluke 9062 test both motor rotation and phase sequence?

Yes, it performs both functions—checking phase order and motor shaft rotation without needing a direct motor connection.

Is it safe to use on live circuits?

Yes, it’s designed for use on live three-phase systems within its rated voltage range and includes insulated test leads.

What voltage types does it support?

It supports 3-phase AC systems ranging from 100V to 700V and frequencies between 15 Hz to 400 Hz.

Does it work on single-phase systems?

No, the Fluke 9062 is specifically designed for three-phase systems and is not compatible with single-phase applications.
