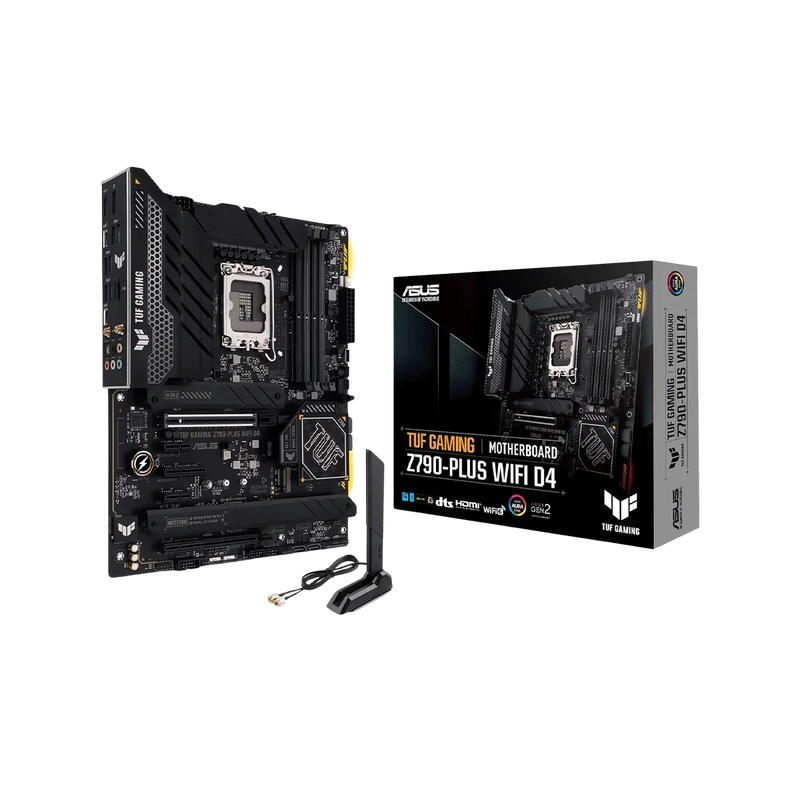

The ASUS TUF Gaming Z790-Plus WiFi D4 is a robust ATX motherboard for Intel 14th, 13th, and 12th Gen CPUs. With PCIe 5.0, DDR4 support, four M.2 slots, WiFi 6, and 2.5Gb LAN, it offers reliable performance and future-ready connectivity for serious gamers and power users.

Product Specifications

• CPU Socket: LGA 1700 (Intel 14th/13th/12th Gen)
• Chipset: Intel Z790
• Memory Support: DDR4 up to 5333 MHz (OC), 4 DIMM slots
• Expansion Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
• Storage: 4 x M.2 slots (PCIe 4.0), 4 x SATA 6Gb/s ports
• LAN: Intel 2.5Gb Ethernet
• Wireless: WiFi 6 (802.11ax), Bluetooth 5.2
• USB Ports: Front USB 3.2 Gen 2 Type-C, Rear USB 3.2 Gen 2x2 Type-C
• Power Delivery: 16+1 DrMOS power stages
• Audio: Realtek 7.1 Channel HD Audio
• Form Factor: ATX
• Thunderbolt Support: Thunderbolt 4/USB4 header (add-on card required)

Key Features

Next-Gen CPU Compatibility: Fully supports Intel’s 14th, 13th, and 12th Gen processors with optimized power delivery and BIOS compatibility.
PCIe 5.0 and M.2 Storage Expansion: Delivers blazing-fast data transfer and supports up to 4 M.2 drives for high-speed storage setups.
Enhanced Cooling and Power Design: Equipped with 16+1 DrMOS power stages, large VRM heatsinks, and military-grade components for stable overclocking.
Fast Networking Options: Includes Intel 2.5Gb LAN and WiFi 6 for high-speed, low-latency internet connections whether wired or wireless.
Advanced Connectivity Features: Offers USB 3.2 Gen 2x2 Type-C and a header for Thunderbolt 4/USB4 expansion, ensuring maximum device compatibility.

How it works

The ASUS TUF Gaming Z790-Plus WiFi D4 connects to Intel LGA 1700 processors and manages system resources with the Z790 chipset. It supports high-performance DDR4 memory and includes a PCIe 5.0 slot for next-gen GPUs. Four M.2 slots allow for fast NVMe SSDs, while Intel 2.5Gb Ethernet and WiFi 6 ensure reliable online gameplay and streaming. Its robust power stages and cooling design enable stable performance under load. The board also offers future-ready connectivity through USB Type-C and Thunderbolt 4 expansion via an optional card.

FAQs

Is this motherboard compatible with DDR5 memory?

No, it supports DDR4 memory only. For DDR5 support, consider the Z790-Plus WiFi D5 variant.

Can I use this with Intel 14th Gen CPUs out of the box?

Yes, though a BIOS update may be required depending on the production date. Check with ASUS support for the latest version.

Does the motherboard include a Thunderbolt 4 port?

No, but it includes a header for Thunderbolt 4/USB4 via a separately sold add-on card.

How many fans or AIOs can this board support?

It includes multiple fan headers and AIO pump support, allowing integration of custom or AIO cooling setups.
